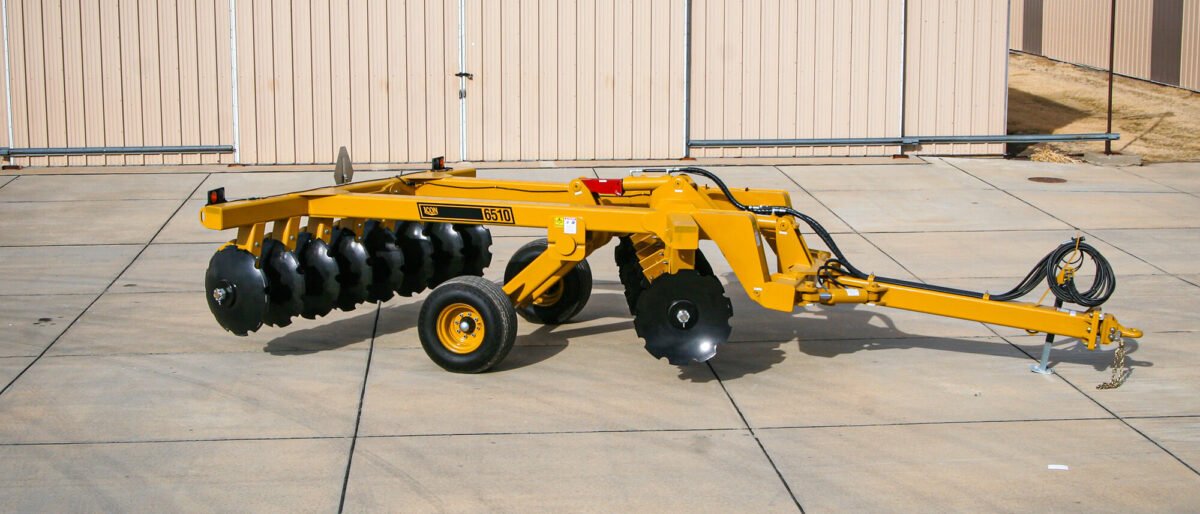

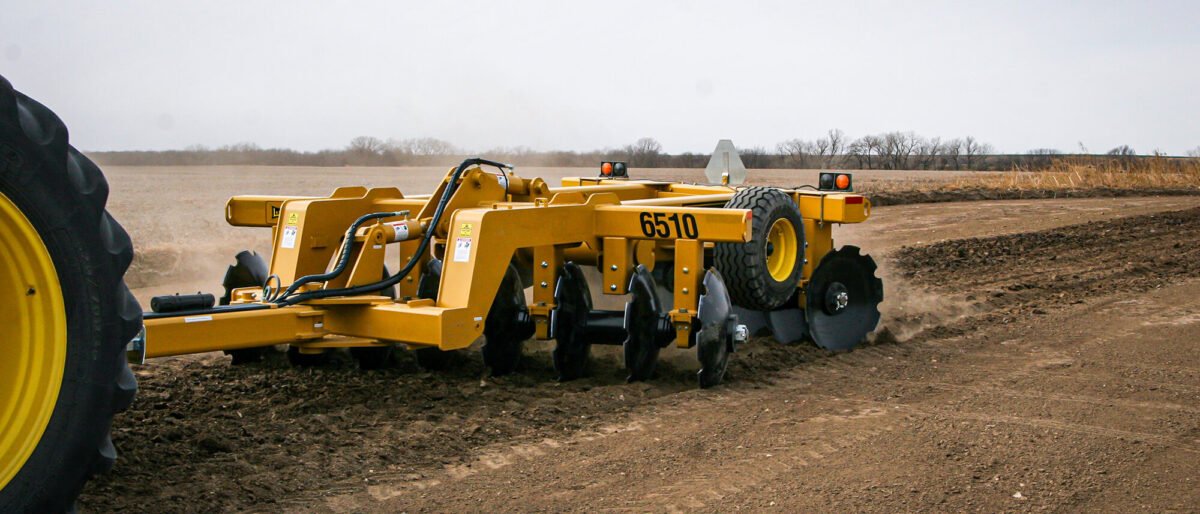

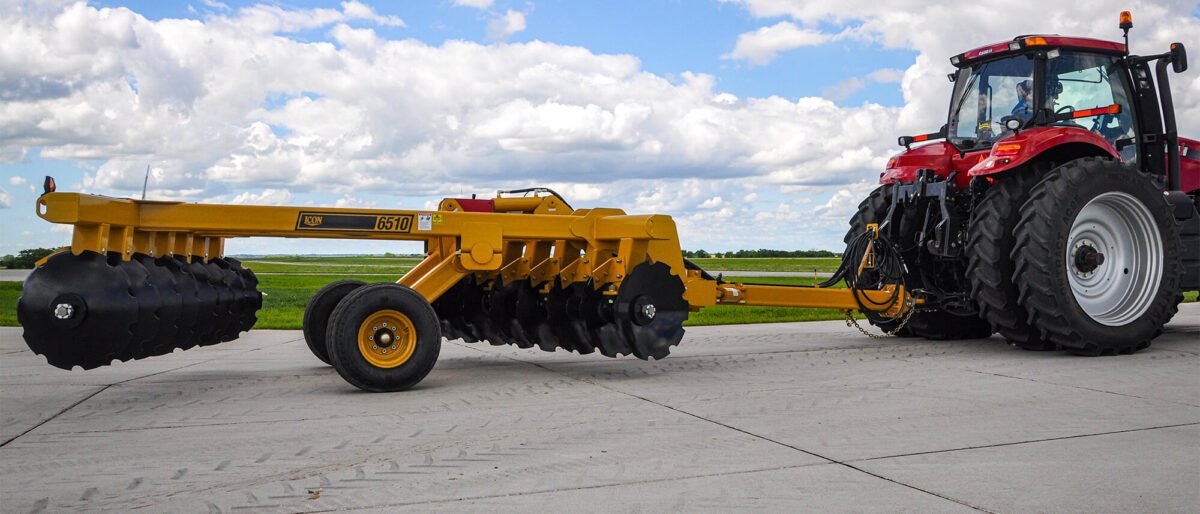

ICON CONSTRUCTION DISC Take your jobsite tillage operations to the next level with the 6510 Construction Disc from ICON – maximum durability is built-in.
TAKE JOB SITE TILLAGE OPERATIONS TO THE NEXT LEVEL Built on an 8” x 8” and 8” x 6” x ½” wall, all-welded one-piece frame, the ICON 6510 Construction Disc can take what tough industrial construction jobs demand. The frame is carried on a 5 1/2” lift axle with 1” wall thickness. Maintenance-free UHMW bearings support the lift axle. Road clearance in transport is 11”. The 4 1/2” diameter cylinders all have 2 1/2” cylinder rods. Industrial rated hoses (4,300 PSI) are used throughout. The disc gang uses a 2 1/2” gang bolt with nuts on both ends. 32” x 10 mm or 36″ x 12 mm notched blades are spaced 17 1/2” apart. C ast spacer spools that are 8 1/2” in diameter provide exceptional blade support. 719 lbs. per blade provides exceptional penetration capacity. Gangs have oil bath bearings. Bearing supports are an integral part of the one-piece frame. Adjustable scrapers keep the blades free from the build-up of material.
DURABLE AND DEPENDABLE The 6510 is not a modified agricultural offset disc. This is the construction disc that contractors have asked for. It’s just the right size to fit the niche market that other manufacturers have over looked. If you need a tool that was designed with the user in mind with maximum durability built-in, look no further than the 6510 Construction Disc from ICON.
10’ 9” Working Width Welded One-Piece Main Frame with ½” Wall x 8” x 8” and 8” x 6” Members Heavy-Duty 5 ½” Lift Axle with 1” Wall Thickness UHMW Lift Axle Bearings 32” x 10 mm or 36″ x 12 mm Notched Disc Blades Spaced at 17 1/2” 20 Degree Front Blade Angle 18 Degree Rear Blade Angle 719 lbs. per Blade Solid 8 ½” Diameter Cast Spacer Spools Round 2 1/2” Gang Bolt with Nuts on Both Ends Oil Bath Bearings 4 1/2” Cylinders Throughout 4,300 PSI Hydraulic Hoses Rigid Cat. IV Hitch with Slotted Hole and 360 Degree Swivel Gang Wrench Yellow Industrial Paint Safety Warning Lights
