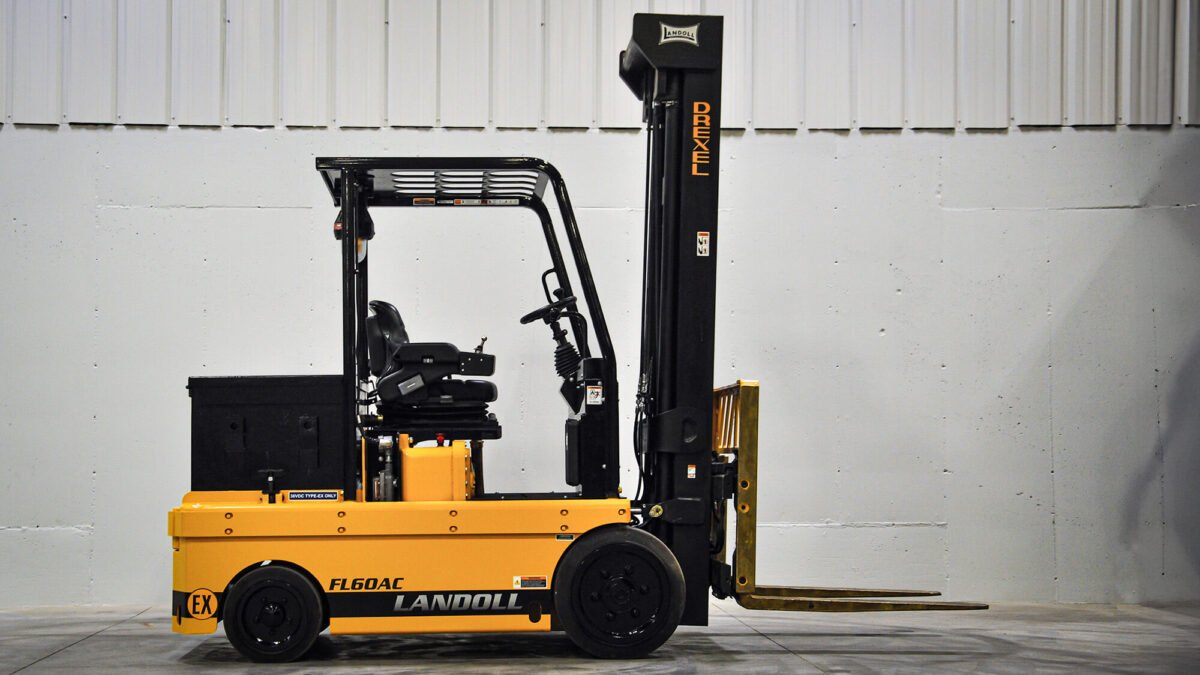

DREXEL EXPLOSION-PROOF FORKLIFT
|
MADE FOR THE TOUGHEST ENVIRONMENTS
The EX range is UL listed for operation in Type EX Class I, Division I, Group D and Class II, Division I, Group G flammable hazardous areas. |
OPTIONS FOR ANY NEED
Available capacities of 4,000 lbs (1814kg) and 6,000 lbs (2722kg) with two, three and four stage masts for lift heights to 250″ (6.35M). AC motors and controls make the EX range efficient and easy to maintain. |
Four-Wheel Configuration – Front Wheel Drive 36 Volt System Curtis AC Traction/Hydraulic Controllers Battery Discharge Indicator with Lift Interrupt Hydrostatic Power Steering 42″ Long Brass Covered Standard Taper Forks Automatic Return to Neutral, Overhead Guard Regenerative Service Brakes Spring Applied Parking Brake on Front Wheels |
Static Grounded Steer Tires RFI Suppressed to MIL-STD-461 (Class III C) Anderson Type N 150 Amp EX Connector Seatbelt (Retractable) Emergency Power Disconnect Switch 48″ (1200mm) High Backrest, Hour Meter Fire Extinguisher and Electric Horn Class III 36″ (914mm) Wide Carriage |
Four-Wheel Configuration Independently Driven Front Wheels, Rear Wheel Steering High Visibility Mast, 2, 3 or 4-Stage 36 Volt Electrical System Adjustable Driver’s Seat Safety Seat Switch Automatically Actuated Parking Brake Curtis AC Controls |
Hour Meter Hydrostatic Power Steering UL “EX” Labeling and Listing Designed for ANSI-UL 583, TYPE EX (Class 1, Division 1, Group D and Class 2,Division 1, Group G) Emergency Power Disconnect Switch Type N-150, 3 Contact Charging Receptacle, Type EX |
AC Traction and Hydraulic Motors Static Ground Steer Tires Cushion Rubber Drive Tires Brass Clad Forks and Load Backrest Seat Belts Overhead Guard Fire Extinguisher Electric Horn Recessed Rear Tow Pin |
